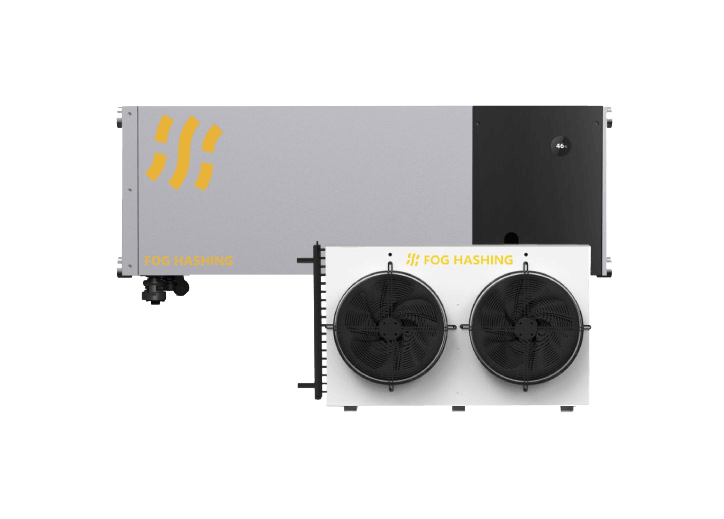

Fog Hashing Immersion Cooling Kit B6D Ultra

Fog Hashing Immersion Cooling Kit B6D Ultra

$2,888.00
$2,888.00
Sale Sold out
Shipping calculated at checkout.
Options



View full details

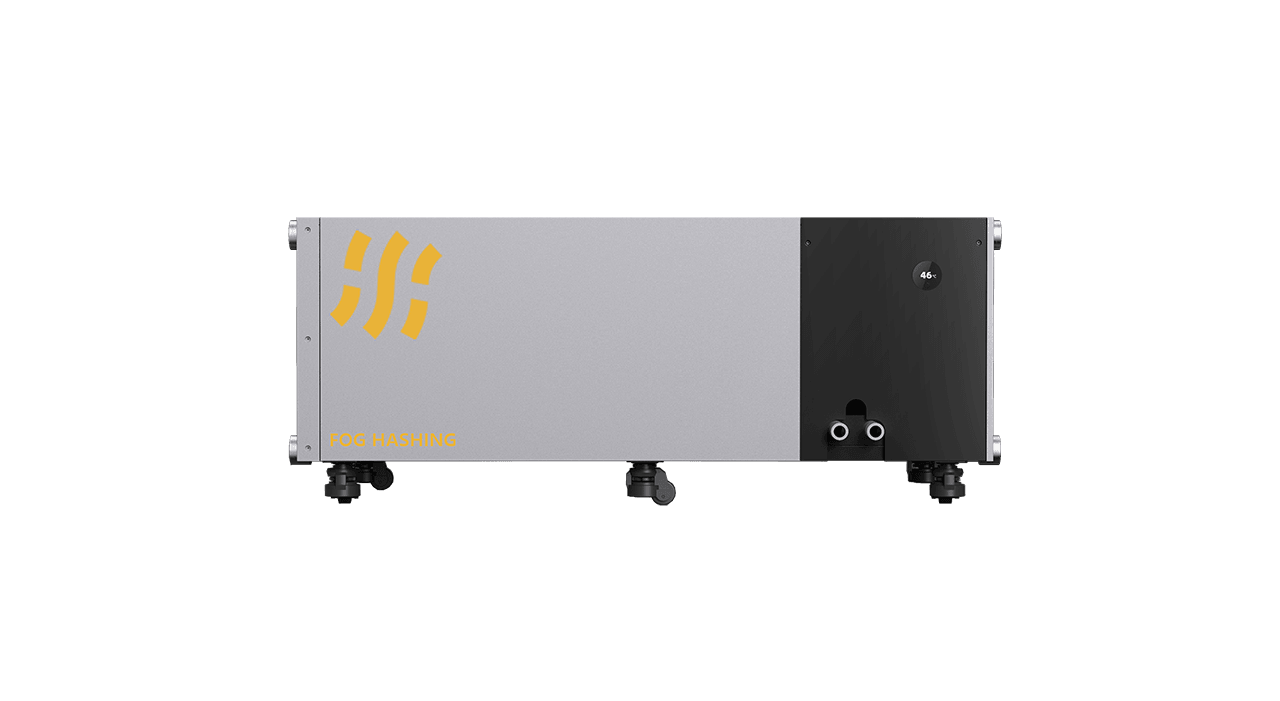

B6 is an immersion cooling case designed for professional mining

Can accommodate 6 Antminer S19.

For different numbers of miners, B6 can be flexibly deployed. It supports single deployment and modular deployment, just like building blocks.

External cooling supports dry cooler or water cooling tower, choose according to the local environment.
Please provide your needs, and we will provide customized solutions according to your needs.

B6D（Dry cooler）

Single circulation

Uses only oil circulation to eliminate secondary heat exchange.

Designed for high-heat areas

Standard water curtain, use water to assist heat dissipation under high-temperature conditions.

Product Features

  • High integration

  •

    Remote management

  •

    Responsive power consumption

  •

    Easy to deploy

  • B6 / B6DTank

    Outer size
     1420(L)*575(W)*620(H) mm
    N.W. / G.W.
    130kg / 180kg -B6      110kg / 166kg-B6D

    Total weight
    230kg (with coolant and miners)

    Input voltage
    3-phase 350-480V 50/60Hz  Single-phase 200-277V 50/60Hz
    Output voltage
    Single-phase 200-277V 50/60Hz
    Cooling capacity
    30kW@30°C
    Power
    400W

    Operating temp
    -10°C ~ 40°C

    Display
    1.32” OLED Screen

    Coolant volume
    160L-B6  174L-B6D

    Capacity
    6 ASIC miners

    Network
    100Mbps Ethernet switch

    External cooling
    Dry cooler/water cooling tower

    Pipe diameter
    DN25（External thread diameter 32mm）

    Inlet and outflow temperature
    45/65°C

    INoise
    55dB(A)-10m
  •

    B6 Dry Cooler

    Outer Size
    1560(L)*440(W)*952(H) mm
    G.W.
    117kg / 133kg

    Input voltage
    3-phase 380-415V 50/60Hz
    Heat Transfer
    30kW@25°C 20kW@35°C
    Operating temp
    -10°C ~ 40°C
    Coolant capacity
    14L

    Power
    580W x2

    Air volume
    13000m³/h

    Noise
    71dB(A)-10m

    Pipe diameter
    DN25（External thread diameter 32mm)

    Pipeline
    5m x2
